PVMR 1025 BIPV photovoltaic metal roof sandwich panel

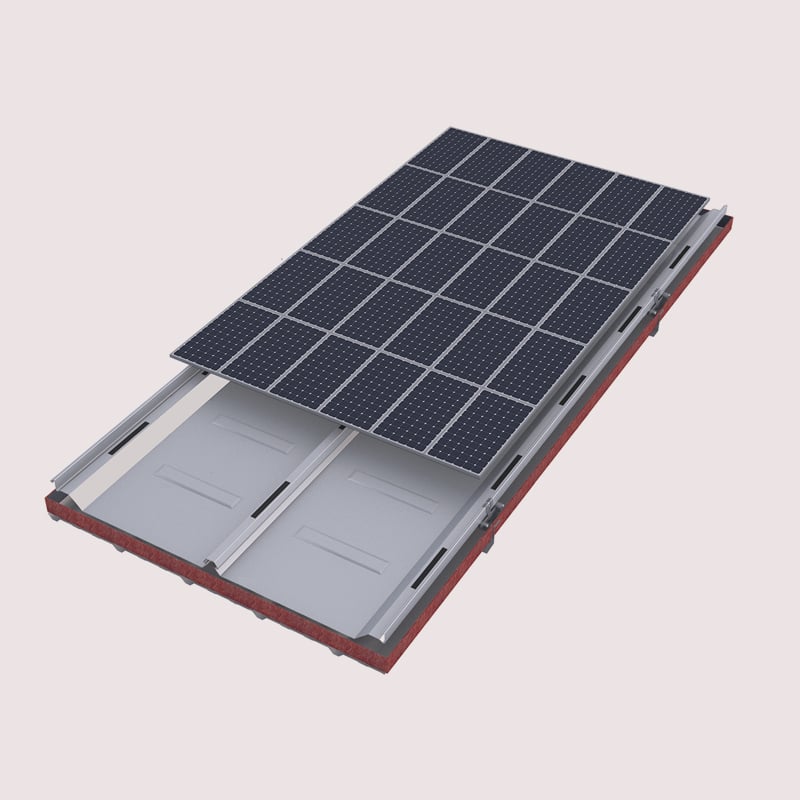

 PVMR 1025 BIPV photovoltaic metal roof sandwich panel  is a true Building-integrated photovoltaic (BIPV) solution. It integrates 700mm wide dual-glass solar modules with custom 1025mm wide metal roofing panels, enabling penetration-free integrated installation via adhesive or clamps to form a complete metal roof solar mounting system.

Its core strength is exceptional wind uplift resistance, achieved through horizontal reinforcement beams and central support brackets, while integrated water gutters enhance durability. Backed by a 25-year warranty, it is the ideal choice for industrial & commercial steel roofs in factories and warehouses. We recommend this system to clients seeking a long-term, reliable, and low-maintenance solar mounting solution for metal roofs, as it functions as both a power generator and the building envelope itself.

PVMR1025 sheet material characteristics table

PVMR1025 sheet system unsupported span selection table



Note:  Strength is calculated under both positive and negative pressure conditions, whereas deflection span is only considered for positive pressures. The selected deflection-span ratio is L/150.

（1）Solar modules can be fixed either by adhesive bonding or clamps

This metal roof solar mounting system offers both adhesive and clamping solutions, perfectly accommodating frameless and framed modules. This flexibility is core to Building-integrated photovoltaic (BIPV) design, enabling penetration-free installation on standing seam metal roofs. It overcomes the limitations of traditional steel roof solar mounting systems, delivering the optimal solution for industrial & commercial photovoltaic roof projects.

（2）Comparatively higher utilization

As an integrated photovoltaic roof module, this system achieves complete fusion of the solar panel and building material, eliminating the wasted space common with retrofitted racks. Compared to standard solar roof mounting systems, it maximizes rooftop coverage, significantly boosting power generation efficiency and ROI for industrial & commercial factory building photovoltaic roofs, making it a model of high-efficiency BIPV metal roof systems.

（3）Horizontal reinforced beams rather than vertical ones are used for better wind resistance

The innovative horizontal reinforcement is central to this wind-resistant metal roof. It effectively disperses wind pressure, greatly enhancing panel stiffness and negative pressure resistance compared to vertical beams. This ensures the safety of the photovoltaic metal roof sandwich panel in severe weather, making it especially suitable for high-specification solar mounting for metal roof projects in high-wind zones.

（4）Wind resistance is further enhanced by central supporting brackets which are easy to be installed

The dedicated central supports work synergistically with the horizontal beams to create a robust, three-dimensional support network, dramatically improving the overall wind uplift integrity of the solar roof mounting system. These prefabricated brackets allow for quick, weld-free installation, significantly enhancing construction efficiency and structural safety for various solar metal roof mount projects.

（5）Water gutters are designed on both ends to extend the adhesive failure time

The unique end water-gutter design rapidly channels away moisture, preventing accumulation at the bonding seams. This fundamentally protects the sealing materials and delays aging. It directly enhances the long-term reliability of adhesive-based Building-integrated photovoltaic systems and tin roof mounting system solar installations, safeguarding the enduring, stable returns on industrial & commercial photovoltaic roof investments.

1. Q: What is the fundamental difference between this photovoltaic system and traditional rack mounting solutions on metal roofs?

A: The fundamental difference is that this is a BIPV photovoltaic metal roof sandwich panel . Its core lies in "integration," not "add-on mounting." Traditional solutions involve installing a metal roof solar mounting system on an existing roof. In contrast, our product is itself a building-material type photovoltaic module, which directly replaces traditional roofing sheets as a photovoltaic metal roof sandwich panel . It integrates power generation, waterproofing, and building enclosure functions, completely eliminating the risk of leakage from roof penetrations and enhancing structural efficiency.

2. Q: How should I choose between the "adhesive bonding" and "clamp mounting" fixation methods provided by the system?

A: The choice depends on the module type and roof design. For frame less double-glass modules, the adhesive-fixed photovoltaic method is recommended to achieve a completely penetration-free installation. For framed modules, clamp-fixed photovoltaic mounting can be used. Both methods are integrated into the PVMR1025 roof panel system and represent reliable solutions within a solar mounting for metal roof system. Customers can choose flexibly based on specific project requirements.

3. Q: How is the system's wind uplift resistance specifically achieved?

A: The system's exceptional wind uplift resistance is achieved through multiple design features. Firstly, the roof panel features a horizontal reinforcement design, offering superior mechanical performance compared to vertical reinforcement. Secondly, the proprietary central supporting bracket provides intermediate support points across the panel width, forming a stable load-bearing system with the side brackets. Together, these designs create a high-standard wind-resistant metal roof, ensuring the safety of industrial & commercial photovoltaic roofs in high-wind areas.

4. Q: As a building-material type photovoltaic system, how is its long-term reliability (e.g., 25-year lifespan) guaranteed?

A: Long-term reliability is guaranteed through system-level design and materials. As a complete metal roof maintenance system, its water gutters on both ends effectively drain moisture, protecting structural adhesives and extending the photovoltaic module adhesive lifespan. All components, panels, and photovoltaic accessory devices are matched and tested for a 25-year system lifespan, ensuring the Building-integrated photovoltaic (BIPV) project delivers consistent, stable power generation throughout its entire life cycle.
