EPS sandwich panel

EPS sandwich panel for steel structure building

Lightweight Construction | Cost-Effective Thermal Insulation | Easy Installation

Name: EPS Sandwich Panel

Width: 980 mm, 1000 mm or 1180mm

Max Length: 6000mm

Wall Thickness: 50 mm, 75mm, 100 mm,150mm,200mm

Steel Facer Thickness: 0.4- 0.8 mm

Core Materials: Expanded Polystyrene (EPS)

Applications: Industrial Buildings, Warehouses, Workshops, Prefabricated Buildings, Commercial Buildings, etc.

Brand:

Glostar

Introduction
Technical Specifications
Applications
Hot Tags
Why Choose Glostar?
Certificate
FAQ

Introduction

Product Overview

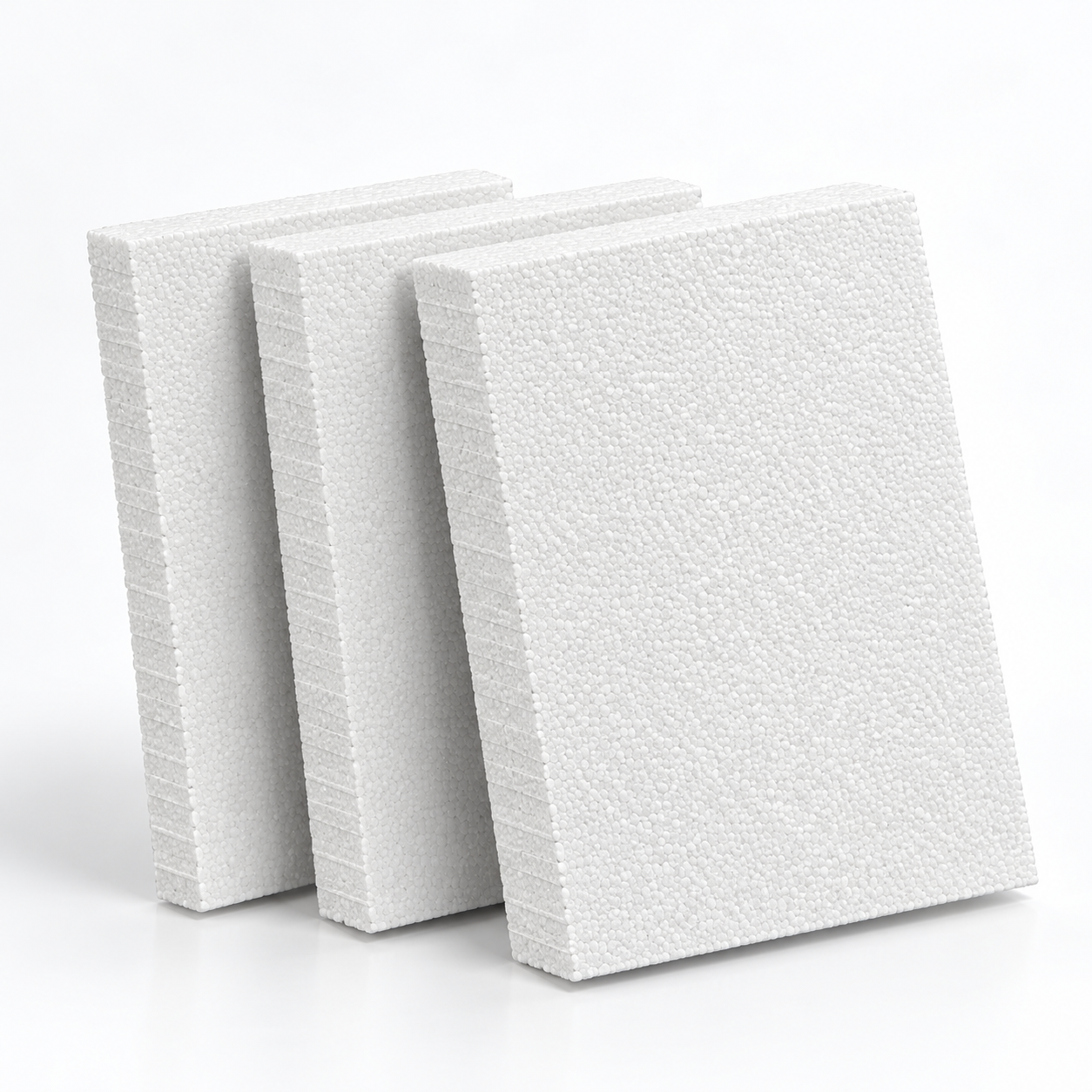

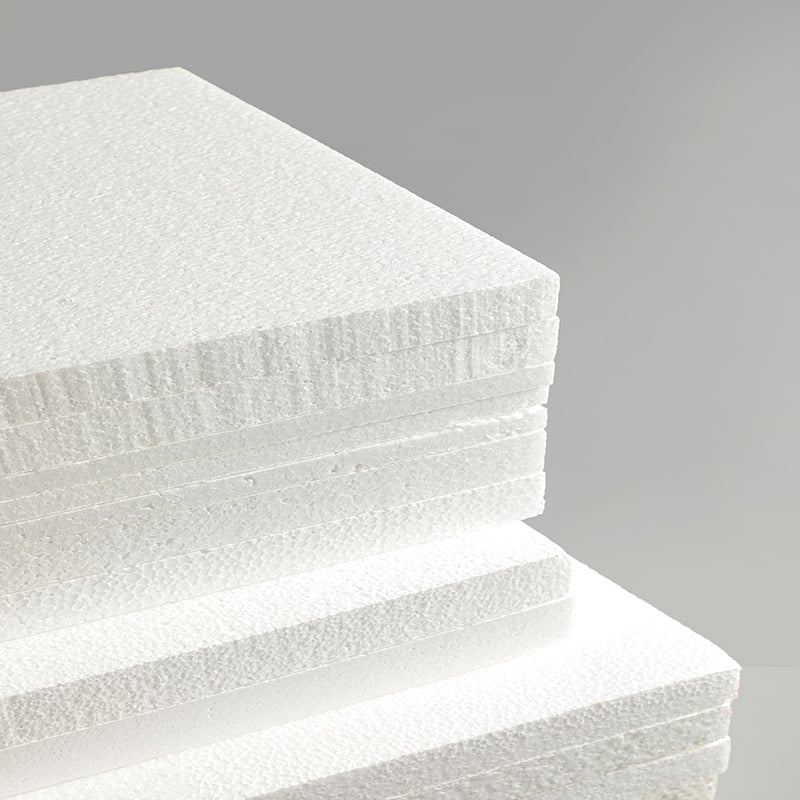

EPS sandwich panels are a type of thermal insulation building panel, consisting of an expanded polystyrene (EPS) foam core bonded between two pre-painted steel facings. These panels are lightweight, offer reliable thermal insulation, and are highly cost-effective, making them an ideal choice for industrial and commercial construction.

Thanks to their ease of installation and customizable specifications, EPS insulated sandwich panels are widely used in factories, warehouses, workshops, temporary structures, partitions, and various other construction projects. Glostar offers a range of customisation options— including panel thickness, steel facing types, colours, and profiles—to meet any project’s specific requirements.

Key Feature

Excellent Thermal Insulation
The EPS foam core helps reduce heat transfer, maintaining a comfortable indoor environment—an ideal choice for buildings with fundamental thermal insulation requirements.
Lightweight and Cost-Effective
The lightweight structure reduces the overall load on the building and simplifies handling, transport, and installation. For projects with budget constraints, EPS panels offer an affordable solution.
Quick and Easy Installation
The prefabricated panel design facilitates efficient installation, helping to shorten construction timelines. A variety of panel profiles and connection systems are available to suit different architectural applications.
Durable Steel Facings
Pre-painted galvanized or galvalume (zinc-aluminum coated) steel sheets serve as the outer layers, providing surface protection while ensuring a clean, aesthetic appearance. Various coating systems, colors, and steel thicknesses can be selected based on project requirements.
Customizable Specifications
Panel thickness, length, steel gauge, color, and surface profile can all be customized to meet specific architectural design and installation requirements.

Technical Specifications

Technical Specifications

Product Type	EPS Sandwich Panel
Thickness	50mm/75mm/100mm/150mm
Core Material	Expanded Polystyrene (EPS)
Core Density	Customized according to requirements
Surface Coating	PE / SMP / HDP / PVDF
Steel Material	Galvanized Steel (GI) / Galvalume Steel (GL) / Pre-painted Galvanized Steel (PPGI)
Panel /Steel Thickness	Customized
Panel Width	Customized

Applications

Application

Hot Tags

Rock wool sandwich panel with PU edge

Polyurethane (PU/PIR/PUF) sandwich wall panel for Cold Storage

Handmade clean room wall panels

Cleanroom Doors | Airtight & Hygienic Cleanroom Door Systems

Cleanroom Windows | Double Glazed Cleanroom Glass Windows Manufacturer

how do you choose the appropriate core material for cleanroom panels?

Why Choose Glostar?

Why Choose Glostar?

Glostar is a professional sandwich panel manufacturer and supplier. Shandong Glostar Panel Building Systems Co., Ltd. is a wholly-owned subsidiary of Glostar, dedicated to providing high-performance building envelope solutions for industrial, commercial, and cleanroom construction projects worldwide. Leveraging advanced manufacturing facilities and a highly skilled production team, we can provide reliable OEM sandwich panel solutions tailored to the specific needs of our global clients. www.glostar-panel.com/about-us

✓11+ Years Experience ✓OEM & ODM Service ✓CE & ISO Certified ✓Advanced Production Lines

✓Strict Quality Control ✓Global Export Experience ✓Technical Support ✓Fast Delivery

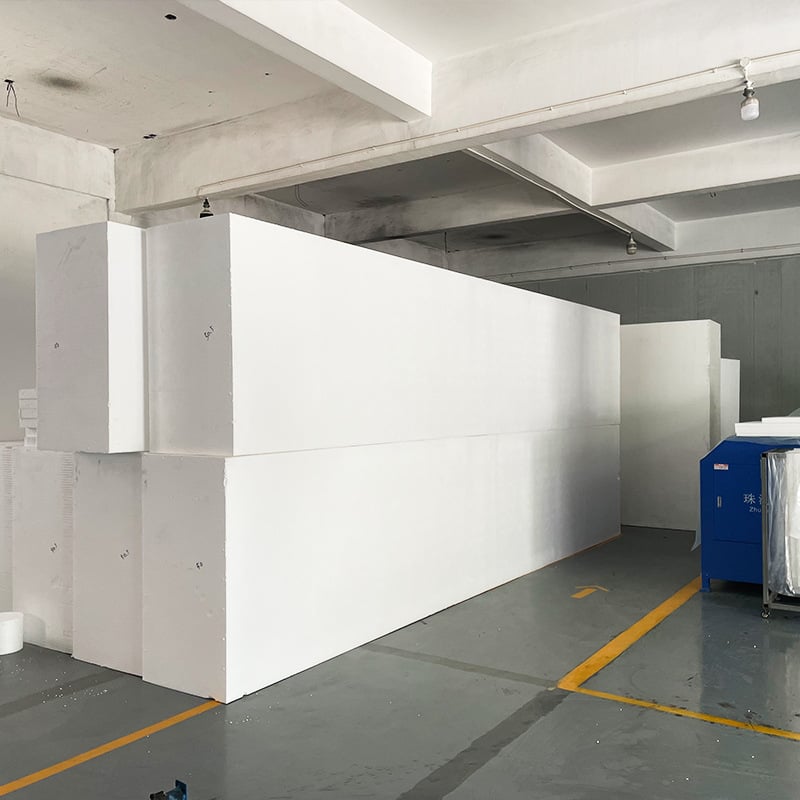

Binzhou Plant, Shandong Province
Staff: 400–600
Plant Production Area: 100,000 m²
Annual Production Capacity: 10,000,000 m²
Production Lines: 9 Xuancheng Plant, Anhui Province
Staff: 200+
Plant Production Area: 90,000 m²
Annual Production Capacity: 10,000,000 m²
Automatic Production Lines: 6

Automatic Production Lines

Certificate

FAQ

FAQ

1. What thicknesses are available for EPS sandwich panels?

Common thicknesses include 50 mm, 75 mm, 100 mm, and 150 mm. Customised thicknesses may be available depending on project requirements.

2. What are the main advantages of EPS sandwich panels?

EPS sandwich panels offer lightweight construction, thermal insulation, cost-effective performance, and convenient installation. They are widely used in factories, warehouses, workshops, and commercial buildings.

3. Are EPS sandwich panels suitable for both walls and roofs?

Yes. EPS sandwich panels are available for wall and roof applications. The appropriate panel profile and specifications depend on the building design, structural requirements, roof slope, and local environmental conditions.

4. Are EPS sandwich panels fire-resistant?

EPS is a combustible insulation material. A sandwich panel's fire performance depends on its core, steel facings, joints, and overall assembly. For projects with specific fire-safety requirements, confirm the applicable fire classification and test reports before selection.

5. Can EPS sandwich panels be customised?

Yes. Glostar offers customisation options for panel thickness, length, steel sheet thickness, surface coating, colour, and panel profile, subject to production capabilities and order requirements.

6. What surface materials and coatings are available?

EPS sandwich panels can be manufactured with galvanised steel, galvalume steel, or pre-painted steel facings. Common coating options include PE, SMP, HDP, and PVDF, depending on the project environment and durability requirements.

7. Where are EPS sandwich panels commonly used?

EPS sandwich panels are commonly used in industrial factories, warehouses, workshops, commercial buildings, temporary structures, modular buildings, and interior partitions where lightweight construction and thermal insulation are required.

8. How can I get a quotation for EPS sandwich panels?

To receive a quotation from Glostar, please provide your required quantity, panel thickness, wall or roof application, steel sheet specifications, preferred colour, and delivery destination. Our team can help confirm suitable specifications and prepare a quotation for your project.
