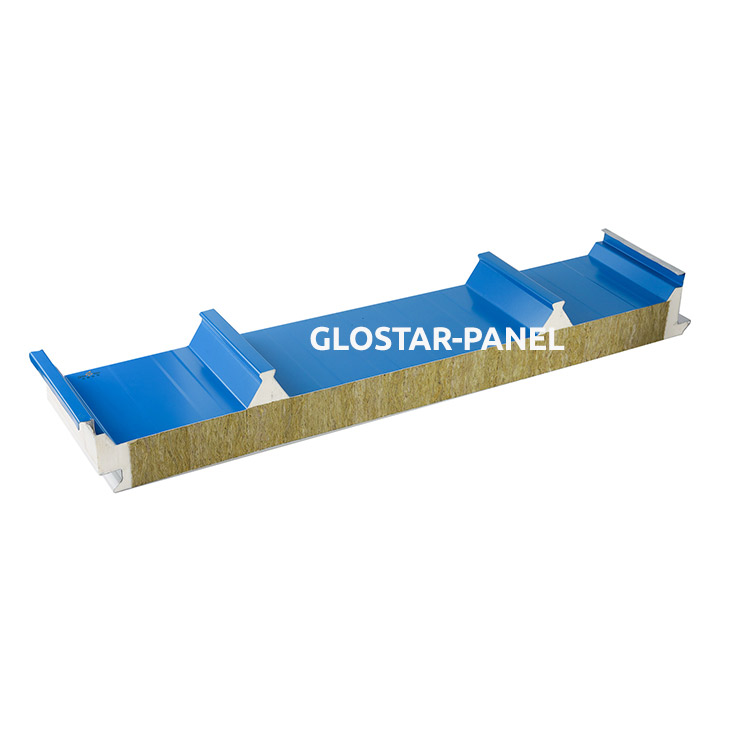

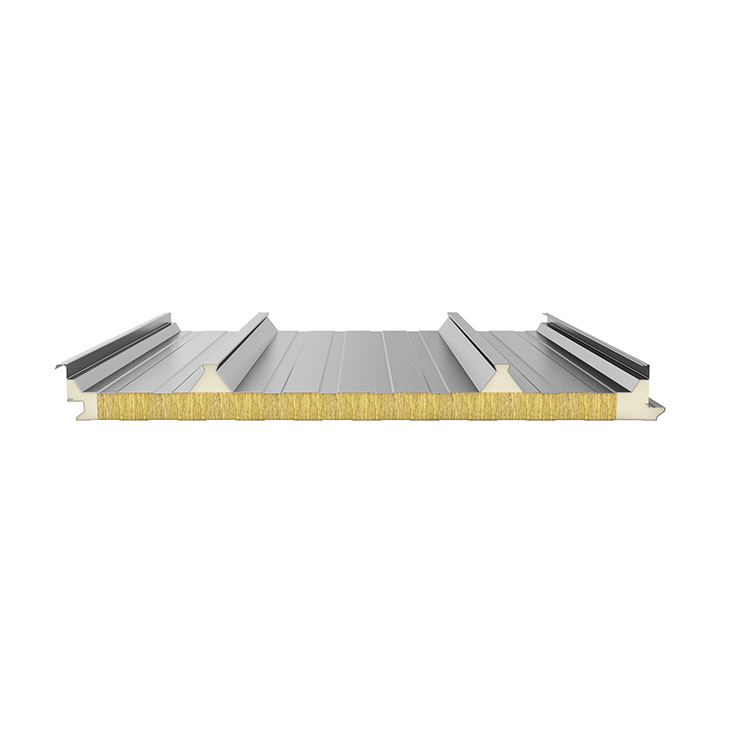

PVR1000 solar sandwich panel

The PVR1000 Solar Sandwich Panel provides excellent waterproofing, wind resistance, fire protection, and thermal insulation. Its concealed interlocking seams and reinforced structure enable fast installation and reliable performance. The standing-seam design supports solar PV mounting and roof accessories without unnecessary roof penetration.

Waterproof & Wind Resistant / A1 or A2 Fire Rating / Thermal Insulation / Strong & Durable / Solar PV Compatible / Weather Resistant / Easy Installation / Customizable Specifications

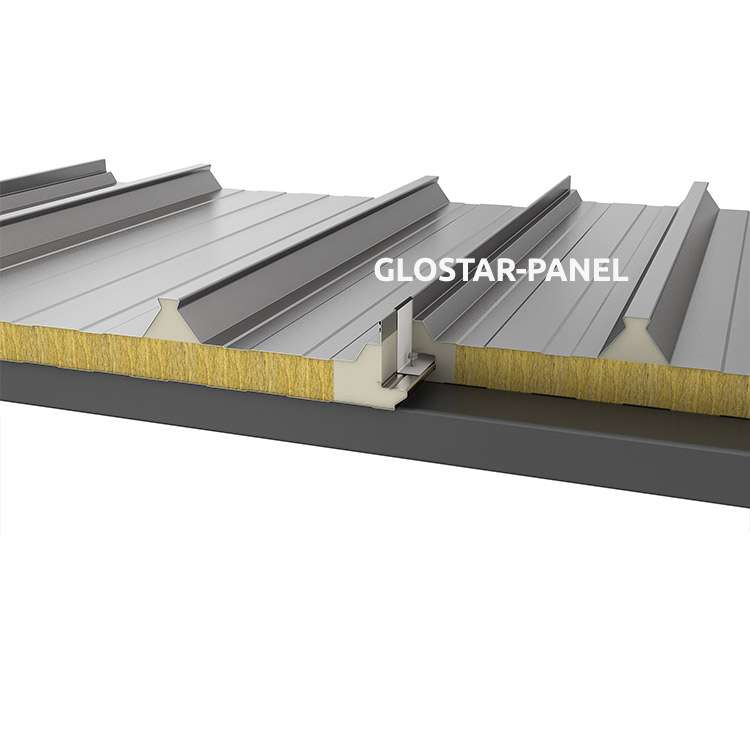

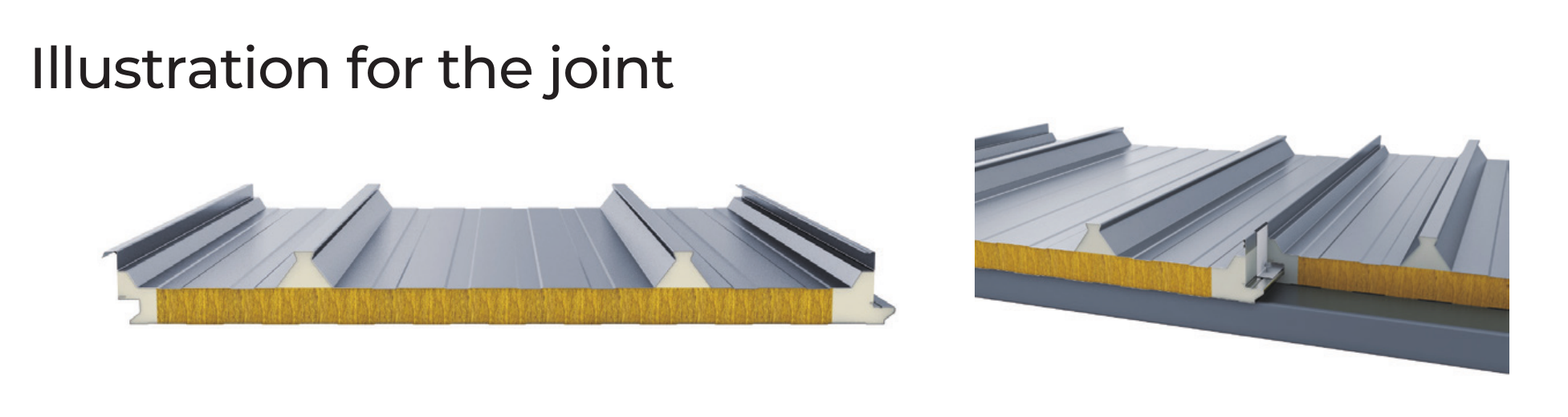

Superior Waterproofing：Concealed interlocking seams effectively prevent water infiltration and enhance roof sealing.
High Wind Resistance：Double-folded seams and reinforcing ribs ensure exceptional structural stability.
High Structural Strength：Reinforcing beams and raised rib designs boost the roof's load-bearing capacity.

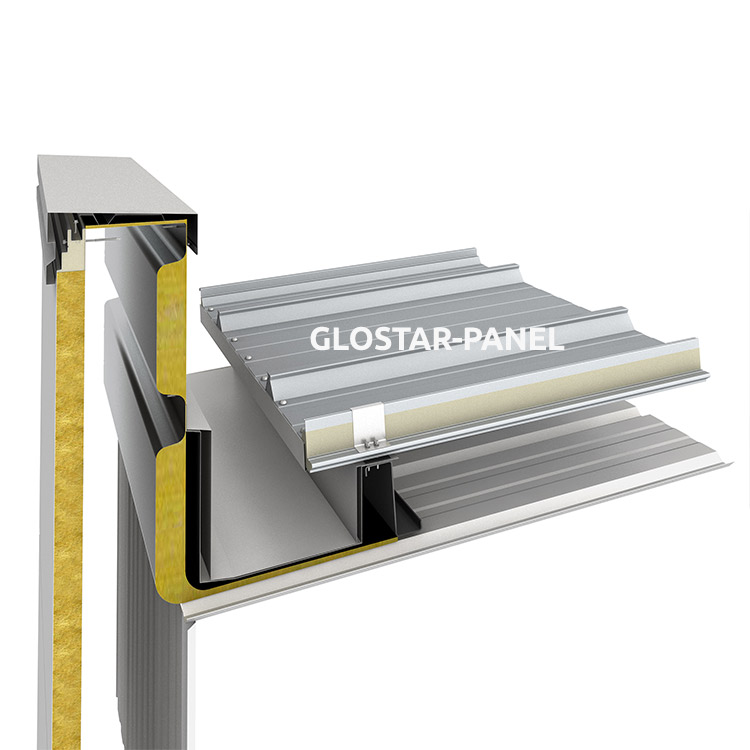

Solar System Compatibility：The standing seam design supports the installation of solar PV mounts and roof accessories without requiring additional roof penetrations.

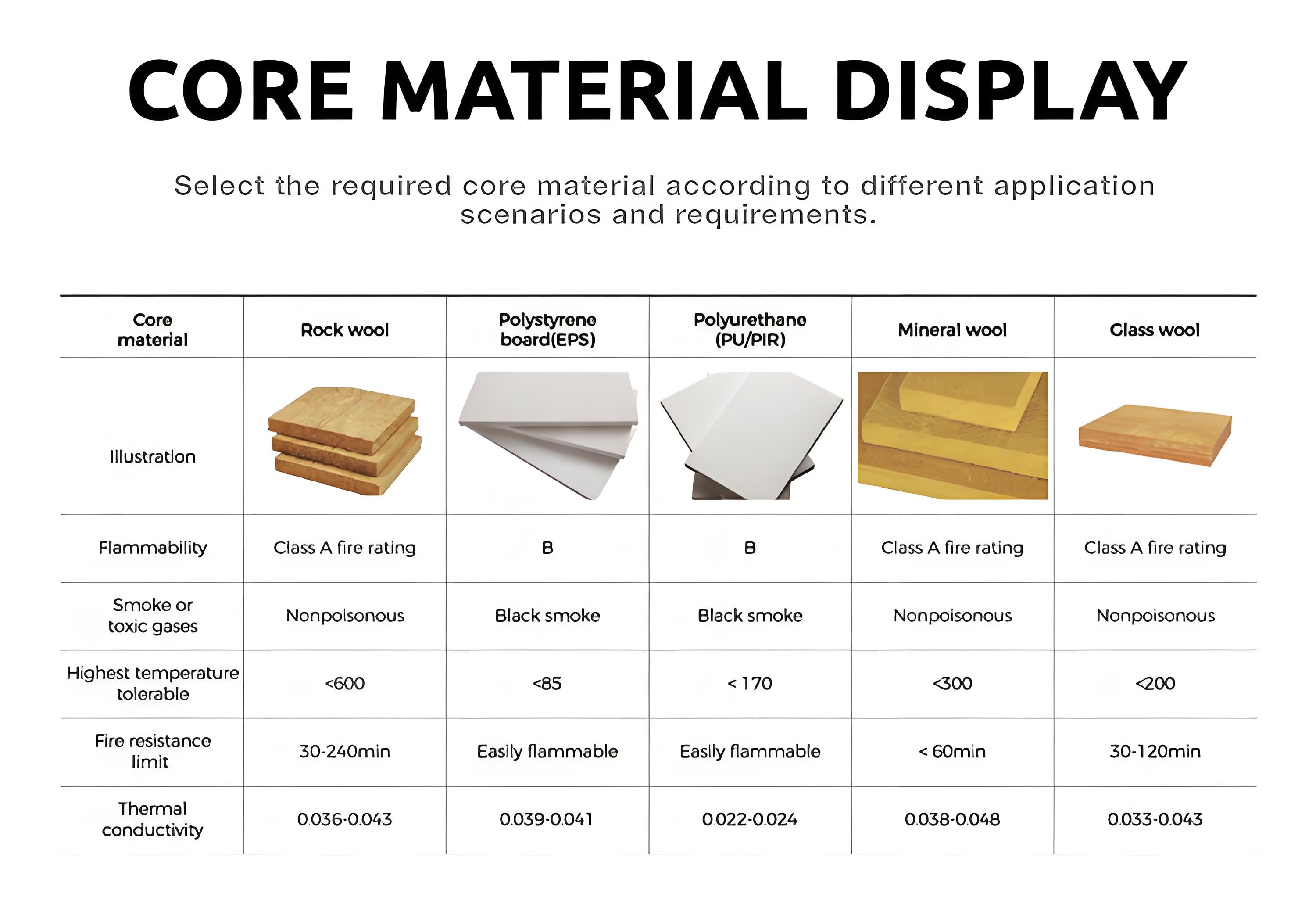

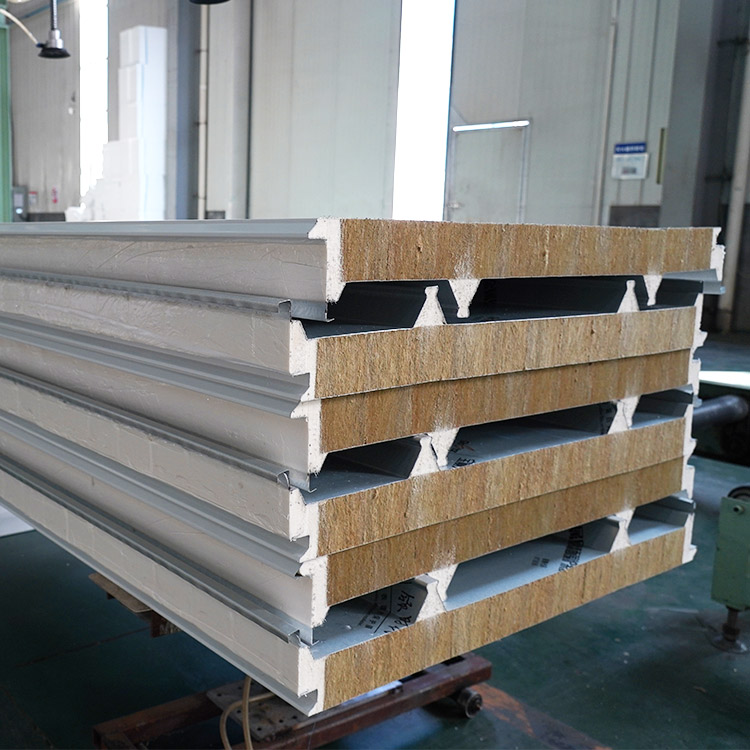

Fire and Thermal Insulation：Rock wool and polyurethane (PU) core materials provide excellent fire resistance and efficient thermal insulation.
Rapid Installation：The mechanical seaming process simplifies installation and effectively shortens construction time.
Durable Roofing System：Color-coated steel combined with a custom coating ensures long-lasting weather resistance.

Wall sandwich panel

Cleanroom System

Coldroom System

Glostar is a professional sandwich panel manufacturer and supplier. Shandong Glostar Panel Building Systems Co., Ltd. is a wholly-owned subsidiary of Glostar, dedicated to providing high-performance building envelope solutions for industrial, commercial, and cleanroom construction projects worldwide. Leveraging advanced manufacturing facilities and a highly skilled production team, we can provide reliable OEM sandwich panel solutions tailored to the specific needs of our global clients. www.glostar-panel.com/about-us

✓11+ Years Experience ✓OEM & ODM Service ✓CE & ISO Certified ✓Advanced Production Lines

✓Strict Quality Control ✓Global Export Experience ✓Technical Support ✓Fast Delivery

Binzhou Plant, Shandong Province
Staff: 400–600
Plant Production Area: 100,000 m²
Annual Production Capacity: 10,000,000 m²
Production Lines: 9 Xuancheng Plant, Anhui Province
Staff: 200+
Plant Production Area: 90,000 m²
Annual Production Capacity: 10,000,000 m²
Automatic Production Lines: 6

Automatic Production Lines

1. What is the MOQ for PVR1000 Solar Sandwich Panels?
The minimum order quantity is 500 m². For larger projects, we can provide customized production and supply solutions.

2. Can the PVR1000 be used for solar PV systems?
Yes. The standing seam design is suitable for solar PV mounting systems and roof accessories without unnecessary penetration of the roof surface, subject to project requirements.

3. What thicknesses are available?
Standard thicknesses are 50mm, 75mm, 100mm, and 150mm. Customized thicknesses are also available.

4. What is the fire rating of the PVR1000?
The PVR1000 can be supplied with A1 or A2 fire-rated configurations, depending on the selected core and panel construction.

5. What is the standard panel size?

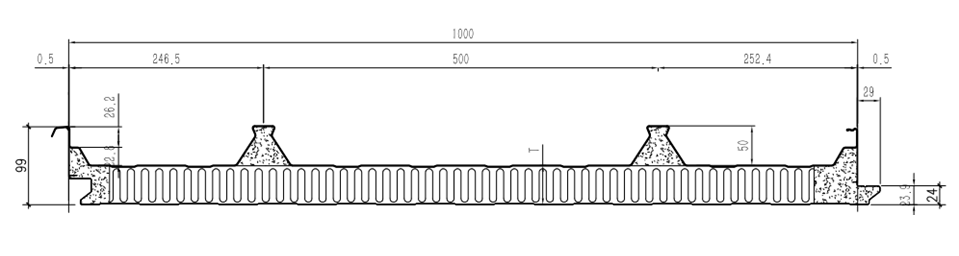

The standard panel width is 1000mm, with panel lengths up to 15,000mm. Customized sizes are available for specific projects.

6. Can the panel color and coating be customized?
Yes. We offer RAL colors and coating options including PE, SMP, HDP, and PVDF. Customized colors and coatings are available.

7. What is the lead time for an order?
The lead time depends on the order quantity, specifications, customization, and production schedule. Our sales team can provide an estimated delivery time after confirming your project requirements.

8. Can you provide samples before placing an order?
Yes. Sample availability and shipping arrangements can be discussed with our sales team before bulk production.

9. Do you provide OEM and customized solutions?
Yes. We support customization of panel thickness, length, core density, surface material, coating, color, and joint details according to project requirements.

10. How can I get a quotation for PVR1000 Solar Sandwich Panels?
Please send us your required quantity, panel thickness, project location, color, and other specifications. We will provide a quotation based on your project requirements.
