The GF228  BIPV standing seam metal roof panel

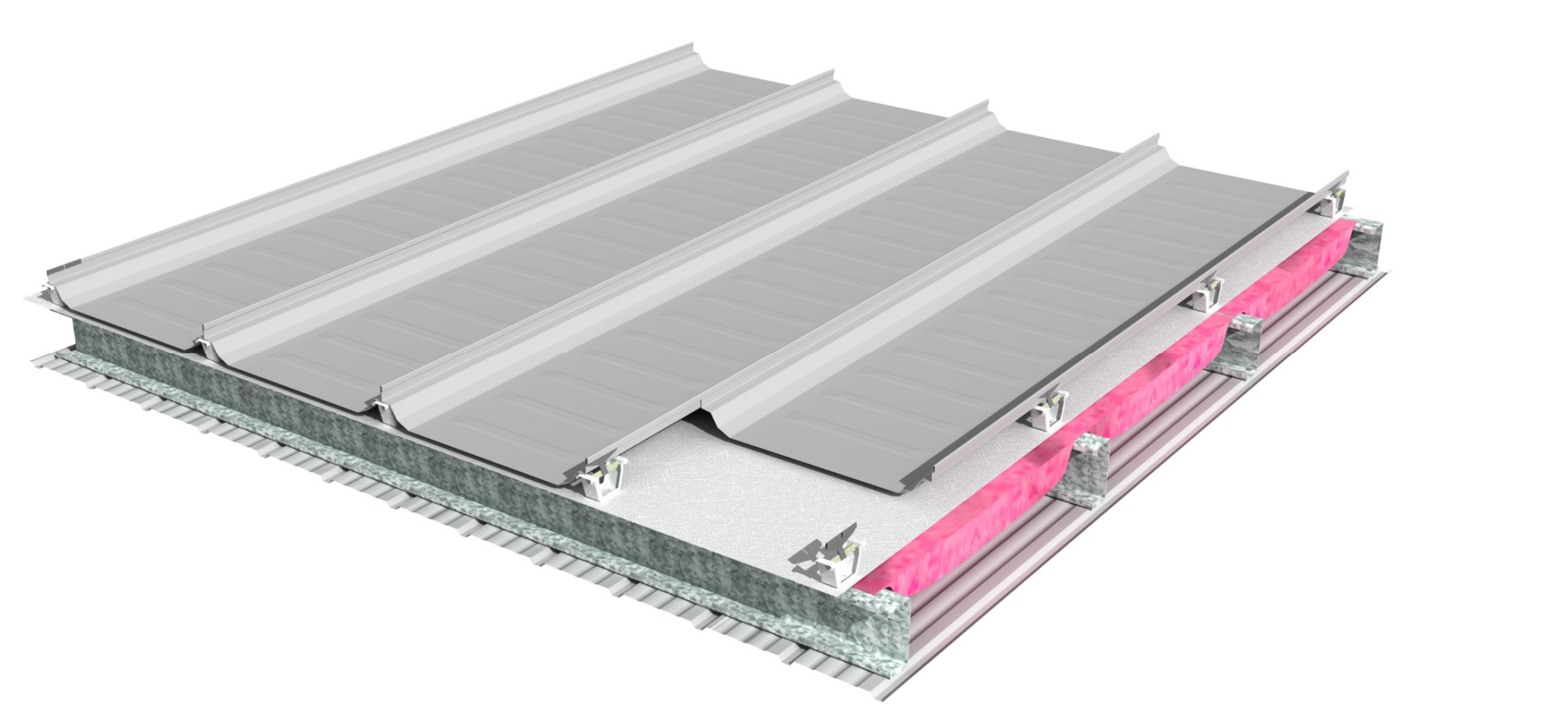

The GF228  BIPV standing seam metal roof panel is a high-performance solar metal roof system that integrates power generation with building enclosure. Its core is constructed from BIPV roll-formed steel roofing, forming a robust PV standing seam metal roof structure, complemented by a PV roof sliding bracket system to accommodate thermal expansion and contraction. The system incorporates insulated PV metal roof panels with matching bottom panels, providing a complete PV roof with bottom panel and insulation solution that ensures exceptional thermal insulation, waterproofing, and high wind resistance. This modular BIPV metal roofing design enables rapid installation, making it the ideal photovoltaic integrated metal roof panel choice for industrial plants, logistics parks, and commercial buildings seeking green upgrades, long-term reliability, and energy self-sufficiency.

（1）360°, 450°, 540° Multi-Angle Lock Seam Adaptability

As a benchmark for PV standing seam metal roofs, the GF228 system offers 360°, 450°, and 540° lock seam options. This design is optimized for high wind resistant BIPV roof systems, ensuring structural safety and stable energy output in severe global climates, providing reliable protection for a solar metal roof system.

（2）Pittsburgh Lock Seam & Dual Pre-Applied Sealant Technology

Our BIPV standing seam metal roof panel employs the core sealing technology of Pittsburgh lock seams and dual pre-applied sealants. This extreme craftsmanship, applied to photovoltaic integrated metal roof panels, prevents leaks at the source, providing a lasting water and air barrier for the building and ensuring the long-term stable operation of the interior environment and the PV system.

（3）Fixed-Width Technology, Pre-Cutting & Systematic Sliding Design

Relying on an advanced BIPV roll-formed steel roof production line, we achieve high-precision fixed-width and pre-cutting. Combined with the collaborative design of the PV roof sliding bracket system, this systematic sliding solution perfectly resolves thermal stress, ensuring that the modular BIPV metal roofing remains flat and risk-free throughout its long service life.

（4）Modular Customization with Anti-Dust & Penetration-Free Design

The GF228 system offers a highly flexible modular BIPV metal roofing customization solution. Its anti-dust accumulation surface and penetration-free accessory design not only enhance power generation efficiency but also achieve deep compatibility with building structures, making it the ideal choice for building a new generation of efficient, clean, and integrated solar metal roof systems.

1. Q: What is the GF228 BIPV standing seam metal roof panel? What are its main components?

A: The GF228 is a BIPV standing seam metal roof panel that deeply integrates photovoltaic power generation with building envelope functions. The system uses BIPV roll-formed steel roofing as the core load-bearing and power generation unit, incorporates a PV roof sliding bracket system to accommodate thermal expansion and contraction, and includes standard insulated PV metal roof panels along with PV roof with bottom panel and insulation layers. Together, these components form a complete, high-performance solar metal roof system solution.

2. Q: What are the core advantages of the GF228 system for large-scale industrial plant roof construction?

A: For large industrial plants, the core advantages of the GF228 system lie in its integrated design and exceptional performance. It provides a high wind resistant BIPV roof system, achieving ultra-high wind uplift resistance through the interlocking structure of the PV standing seam metal roof. Additionally, its photovoltaic integrated metal roof panels serve directly as the building envelope while generating electricity, eliminating the need for additional traditional PV mounting structures, saving space and structural load, and achieving perfect integration of building and energy systems.

3. Q: Is the installation and maintenance of this system complex?

A: The GF228 system adopts a modular BIPV metal roofing design, with main components prefabricated in the factory. On-site work primarily involves assembly and installation, significantly improving construction efficiency and accuracy. Its PV roof sliding bracket system and PV standing seam metal roof design provide self-adaptive capability, reducing maintenance needs caused by thermal stress. The surface anti-dust accumulation design also minimizes the frequency of routine cleaning.

4. Q: How does the GF228 system ensure long-term waterproofing and airtightness of the roof?

A: The system ensures lasting sealing through multiple core technologies. The PV standing seam metal roof, paired with specialized seaming equipment, forms a physical waterproof barrier. Innovative sealing technologies are applied at critical nodes to prevent leakage risks structurally. These designs collectively ensure the BIPV standing seam metal roof panel delivers extreme water and airtight performance under various climatic conditions, safeguarding the building's internal environment and the safe operation of the PV system.
