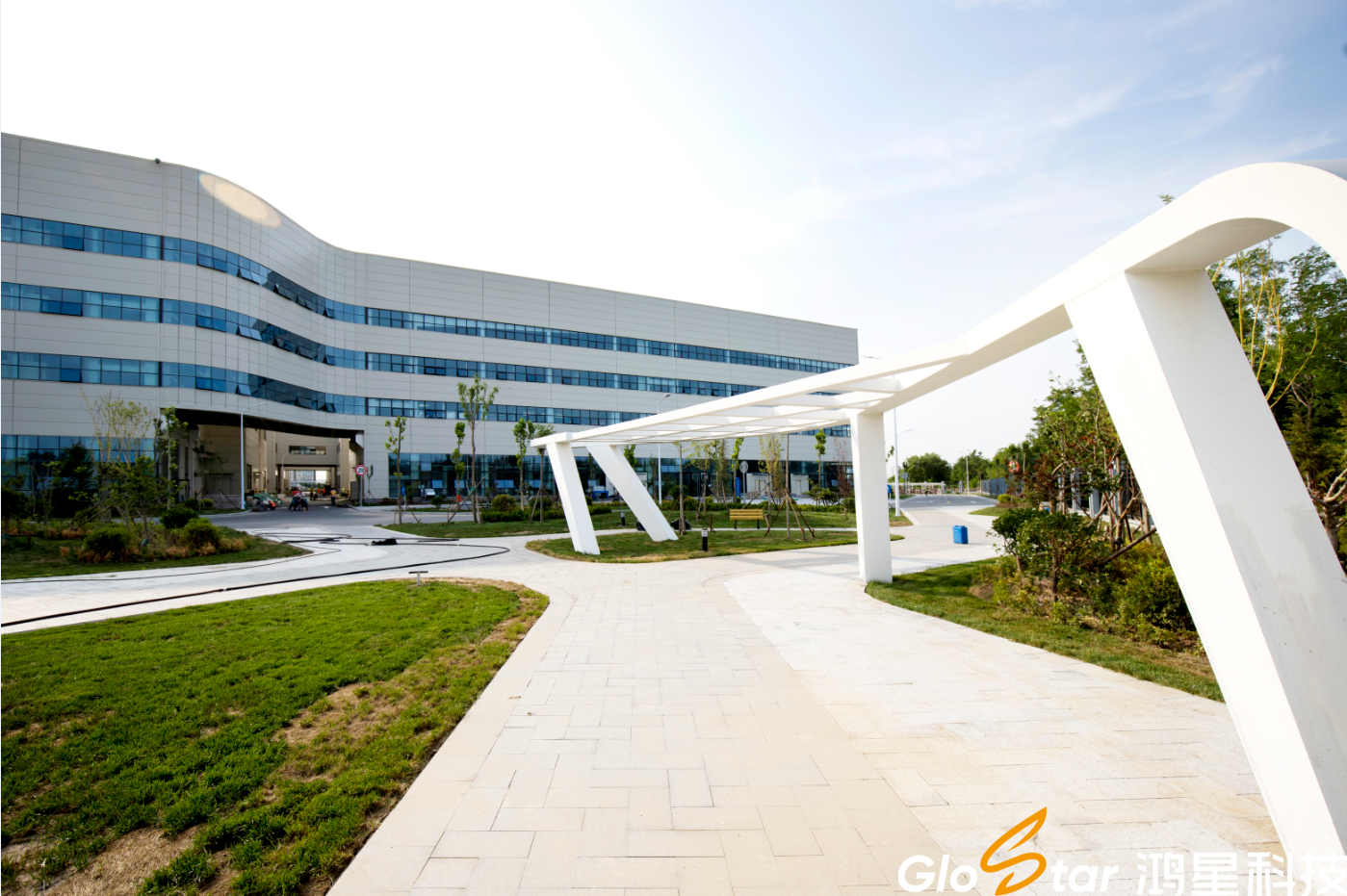

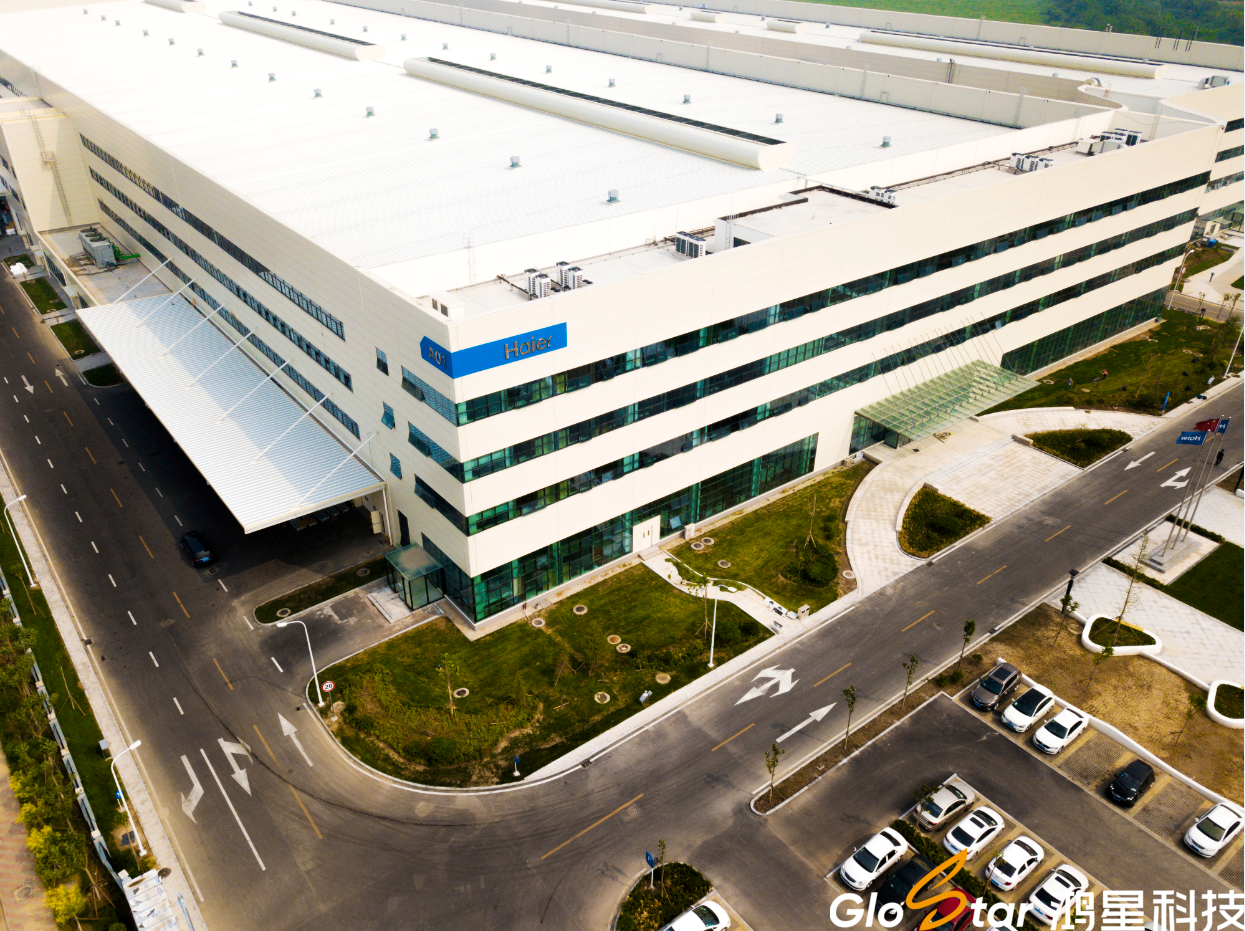

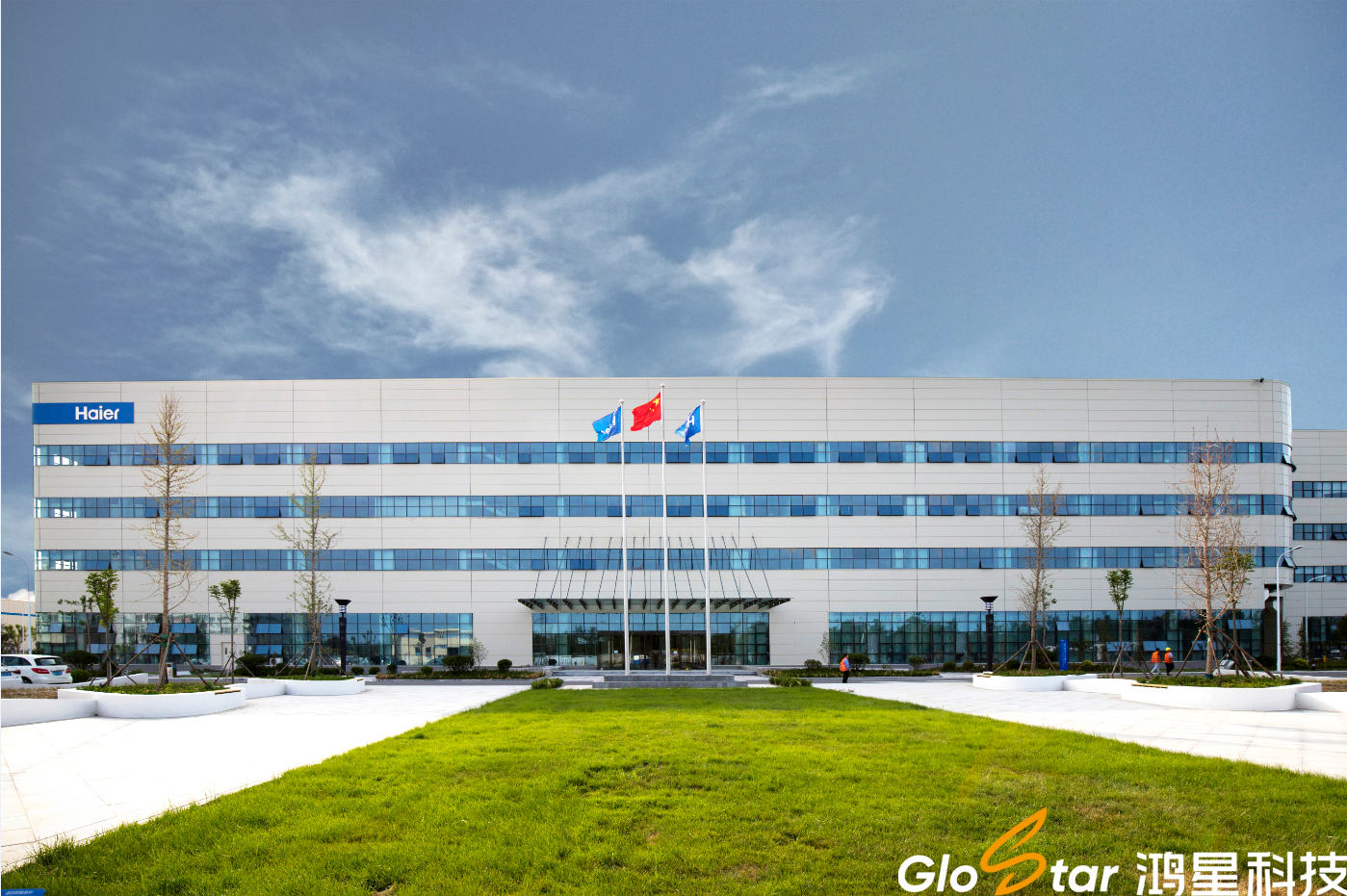

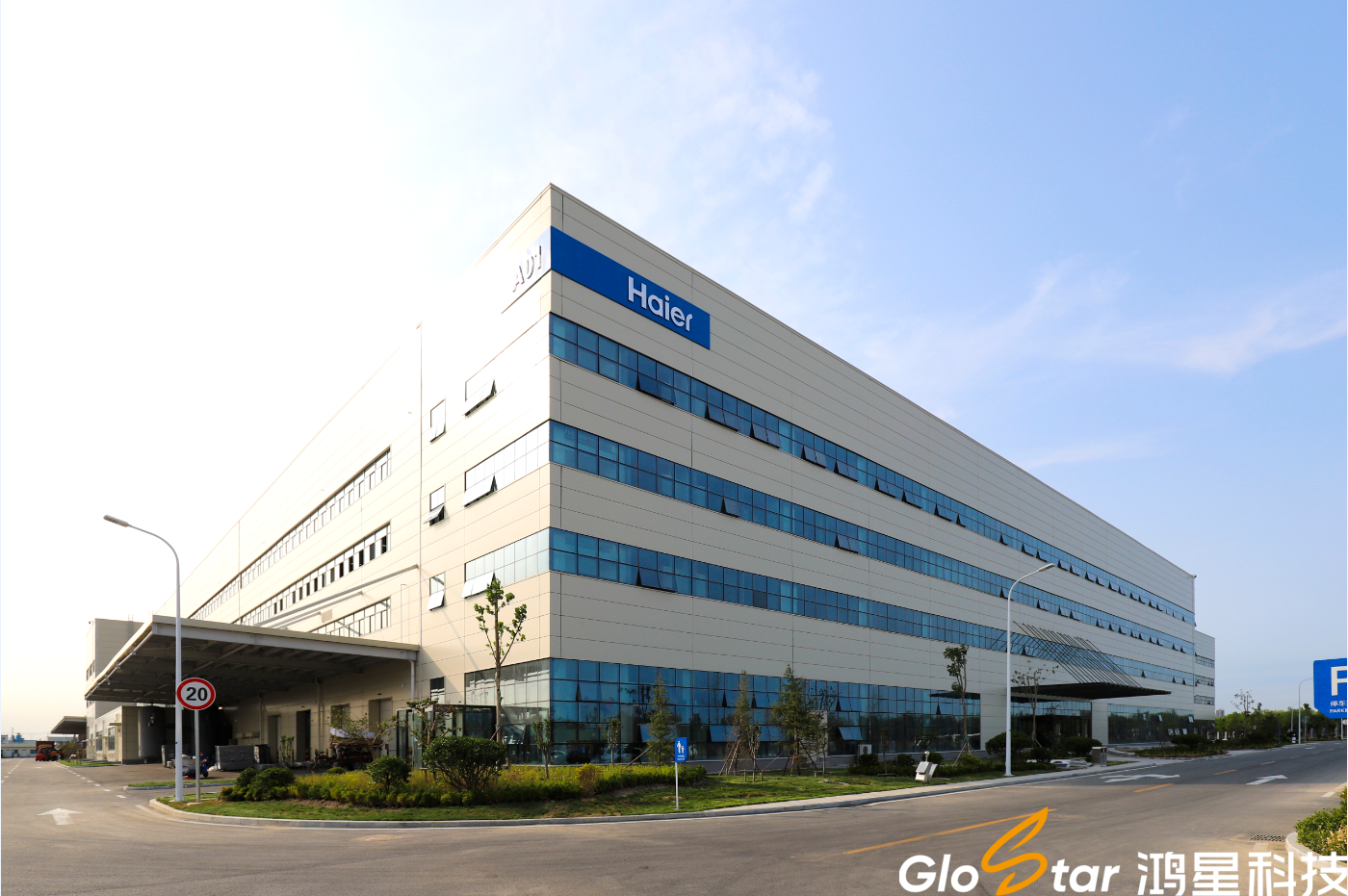

Haier Industrial Park

1. Core supplier of exterior wall enclosure system for Tianjin Haier Washing Machine Interconnected Factory (Tianjin Haier Industrial Park) 2. Main Exterior Wall Panels (PU-edged Rockwool Sandwich Panels) with Glostar Item Parameter ...

1. Core supplier of exterior wall enclosure system for Tianjin Haier Washing Machine Interconnected Factory (Tianjin Haier Industrial Park)

2. Main Exterior Wall Panels (PU-edged Rockwool Sandwich Panels) with Glostar

Item	Parameter
Face Panel Material	Fluorocarbon-coated color steel sheet / aluminum veneer (0.6–1.2mm)
Core Material	Class A non-combustible rockwool, thermal conductivity λ ≤ 0.04 W/(m·K)
Panel Type	Tongue-and-groove / hidden fastener type, vertical division
Thermal Insulation Performance	Thermal transmittance K ≤ 0.6 W/(㎡·K)
Air & Water Tightness	Class 1 (GB/T 21086)
Wind Pressure Resistance	≥ 1.2 kPa
Fire Rating	Class A non-combustible
Weather Resistance	Fluorocarbon coating warranty ≥ 15 years, adaptable to -20℃~40℃ temperature range
Seismic Fortification	Grade 7

3. Office Area Glass Curtain Wall System

Item	Parameter
Type	Semi-hidden frame glass curtain wall (horizontal visible, vertical hidden)
Glass Configuration	Low-E insulated tempered glass (6+12A+6)
Frame	Thermal-break aluminum alloy profiles, fluorocarbon coating
Thermal Insulation Performance	Thermal transmittance K ≤ 2.0 W/(㎡·K)
Sound Insulation Performance	≥ 40 dB
Air & Water Tightness	Class 1 (GB/T 21086)
