Glostar (Unicon) assembled interior system (ceiling & wall panels) has been applied to the Liaocheng People’s Hospital project. Cooperative Party: Shandong Hongxing New Material Technology Co., Ltd. (GloStar / Unicon) Project Name: Li...

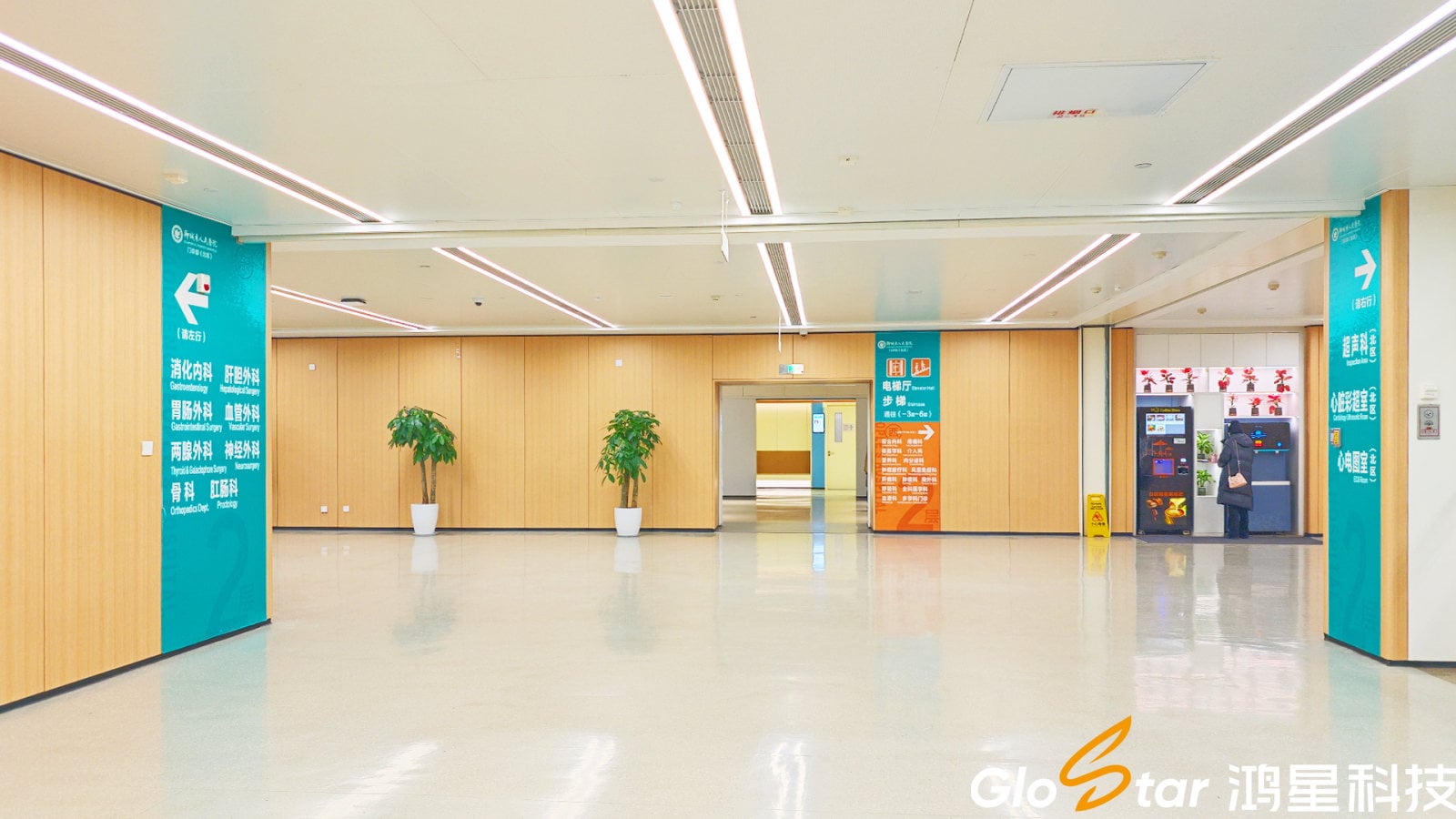

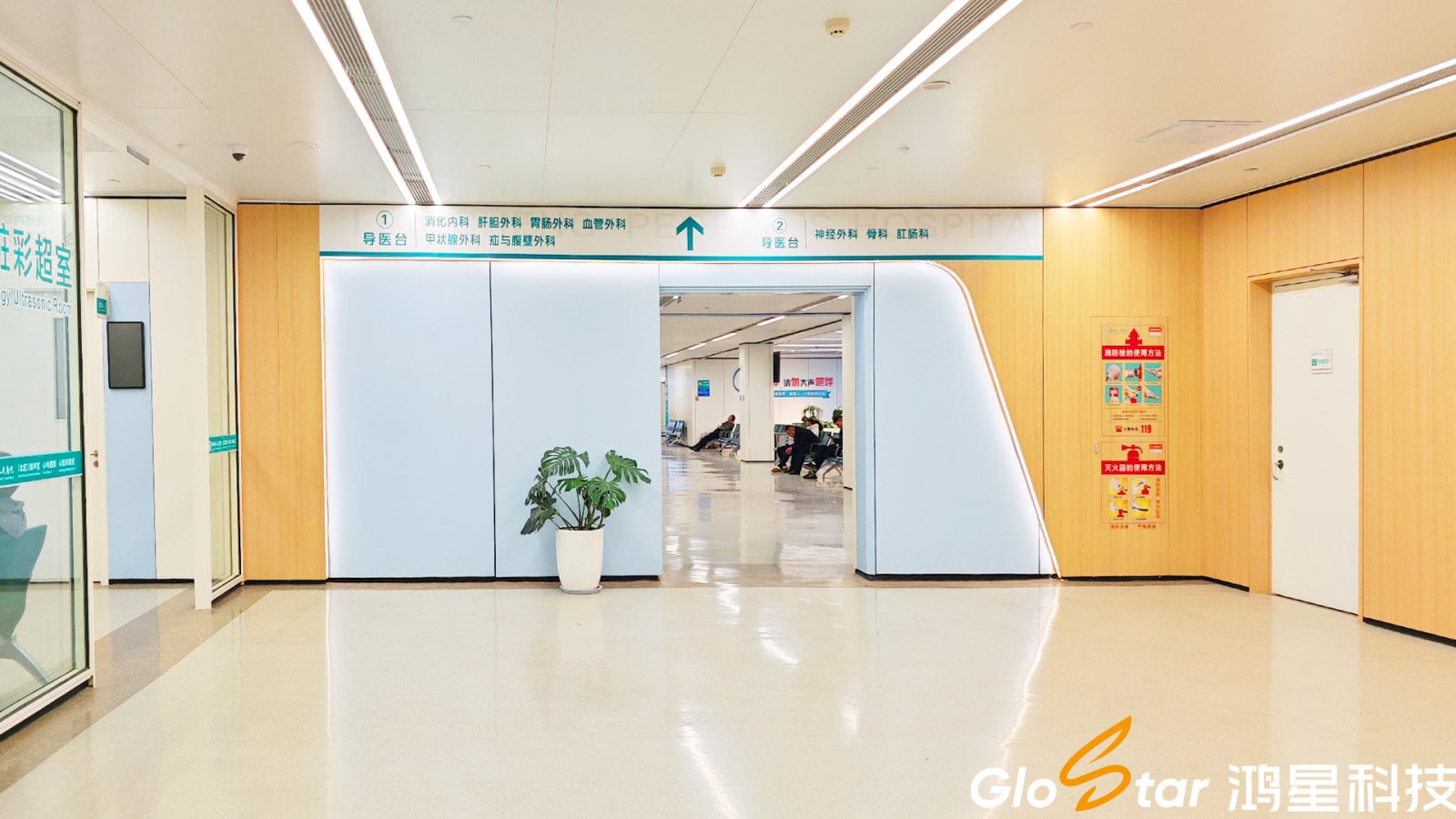

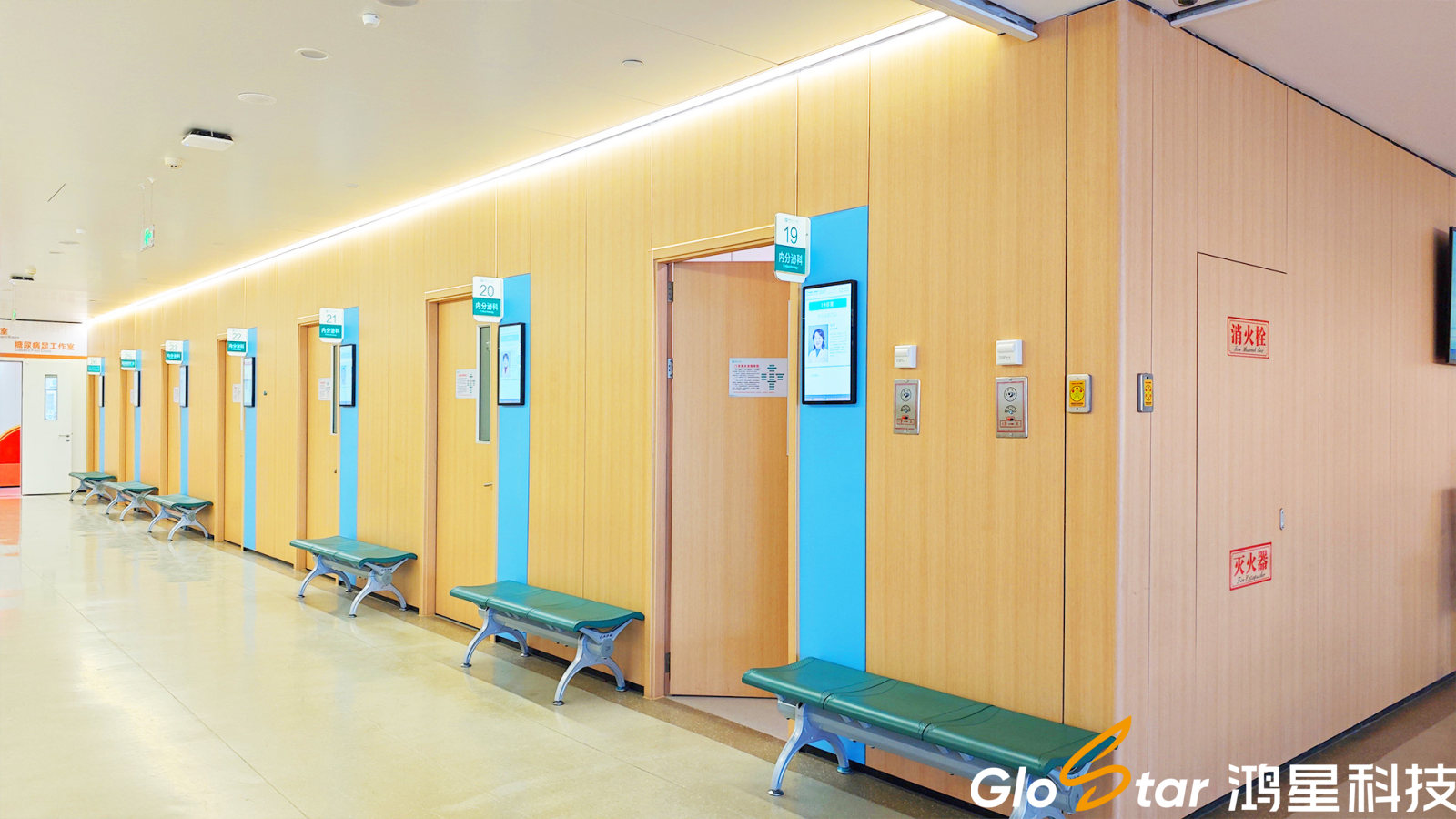

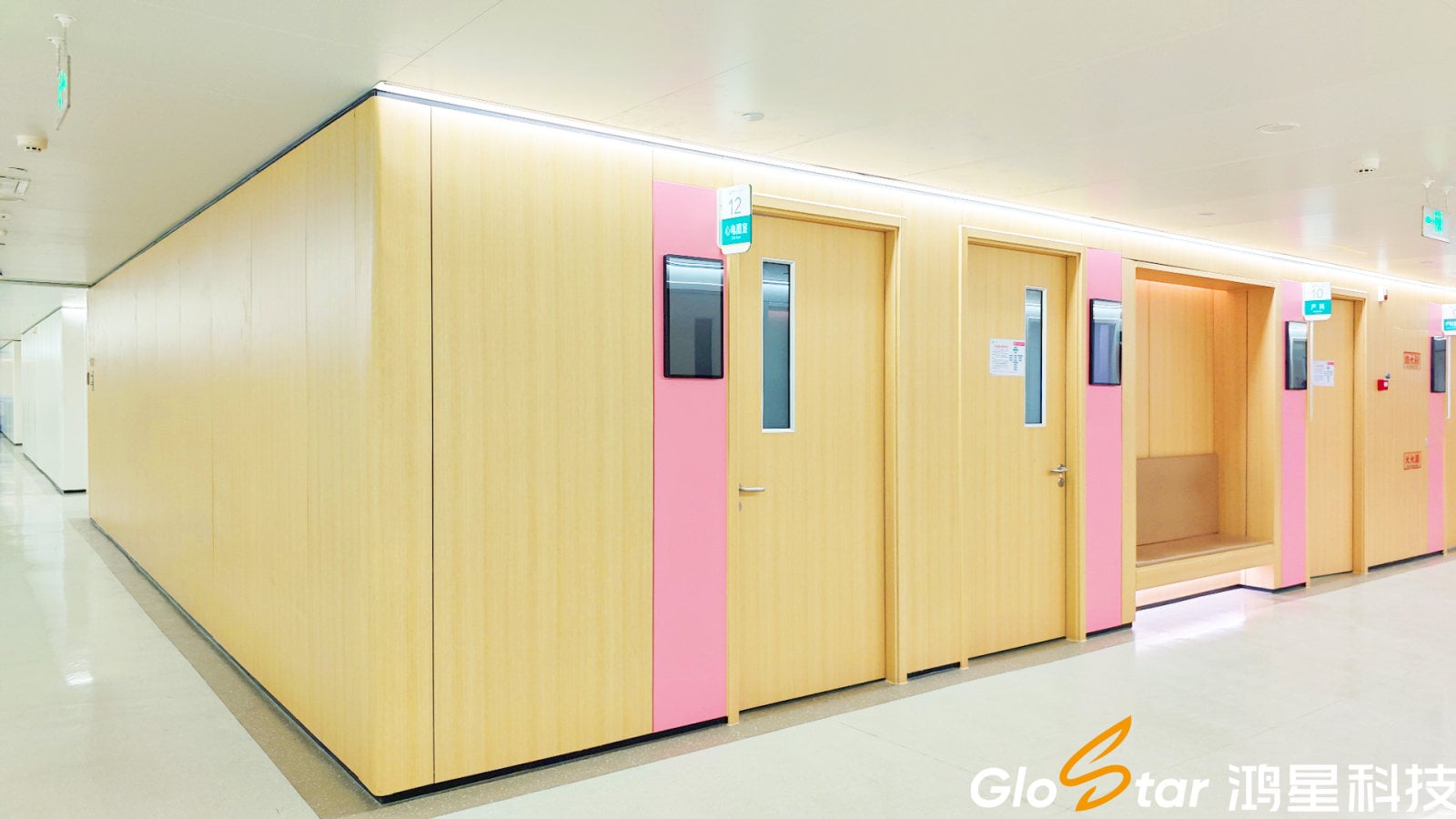

Glostar (Unicon) assembled interior system (ceiling & wall panels) has been applied to the Liaocheng People’s Hospital project.
(Wards / Corridors / Medical Technical Areas)
|
Item |
Parameter |
|
Face Panel Material |
High-grade aluminum alloy (3003/5005) |
|
Face Panel Thickness |
0.8 mm |
|
Core Material |
Anti-corrosion aluminum corrugated core, height 5 mm |
|
Standard Panel Size |
1220 × 2440 mm (customizable) |
|
Total Thickness |
5.0 mm |
|
Installation |
Concealed hook-type tight joint installation |
|
Fire Rating |
Class A non-combustible |
|
Noise Reduction Coefficient |
0.65 (after perforation) |
|
Color |
Matte white (RAL9016) |
(Wards / Corridors / Nurse Stations)
|
Item |
Parameter |
|
Face Panel Material |
Cold-rolled steel sheet with polyester antibacterial coating |
|
Face Panel Thickness |
0.7 mm |
|
Core Material |
Aluminum honeycomb core |
|
Total Thickness |
18 mm |
|
Panel Size |
960 × 3000 mm (effective width 960 mm) |
|
Installation |
Modular plug-in type, glue-free |
|
Fire Rating |
Class A non-combustible, fire resistance ≥ 0.4 h |
|
Sound Insulation |
≥ 35 dB |
|
Environmental Grade |
E0, no formaldehyde emission |
|
Color |
Light gray (RAL7035) |
(Ward Doors / Passage Doors)
|
Item |
Parameter |
|
Door Panel Material |
Cold-rolled steel sheet, thickness 0.8 mm |
|
Door Leaf Thickness |
45 mm |
|
Core Material |
Rock wool core |
|
Observation Window |
Double-layer insulated tempered glass (300 × 400 mm) |
|
Seal Strip |
EPDM, weather-resistant & antibacterial |
|
Hardware |
Stainless steel hinges, lever handle lock |
|
Fire Rating |
Class A non-combustible |
|
Sound Insulation |
≥ 28 dB |
|
Color |
Light blue (RAL5012) |
