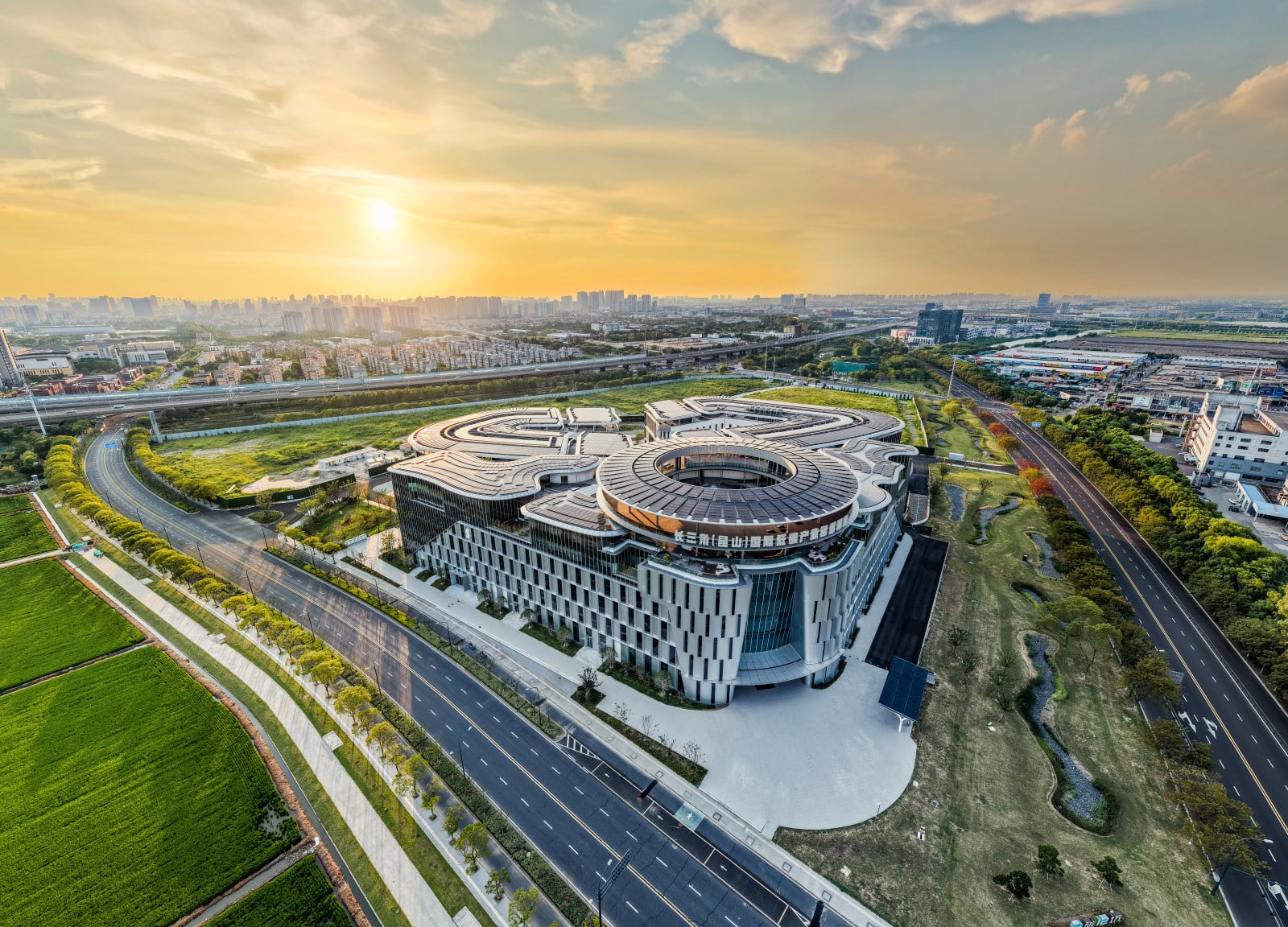

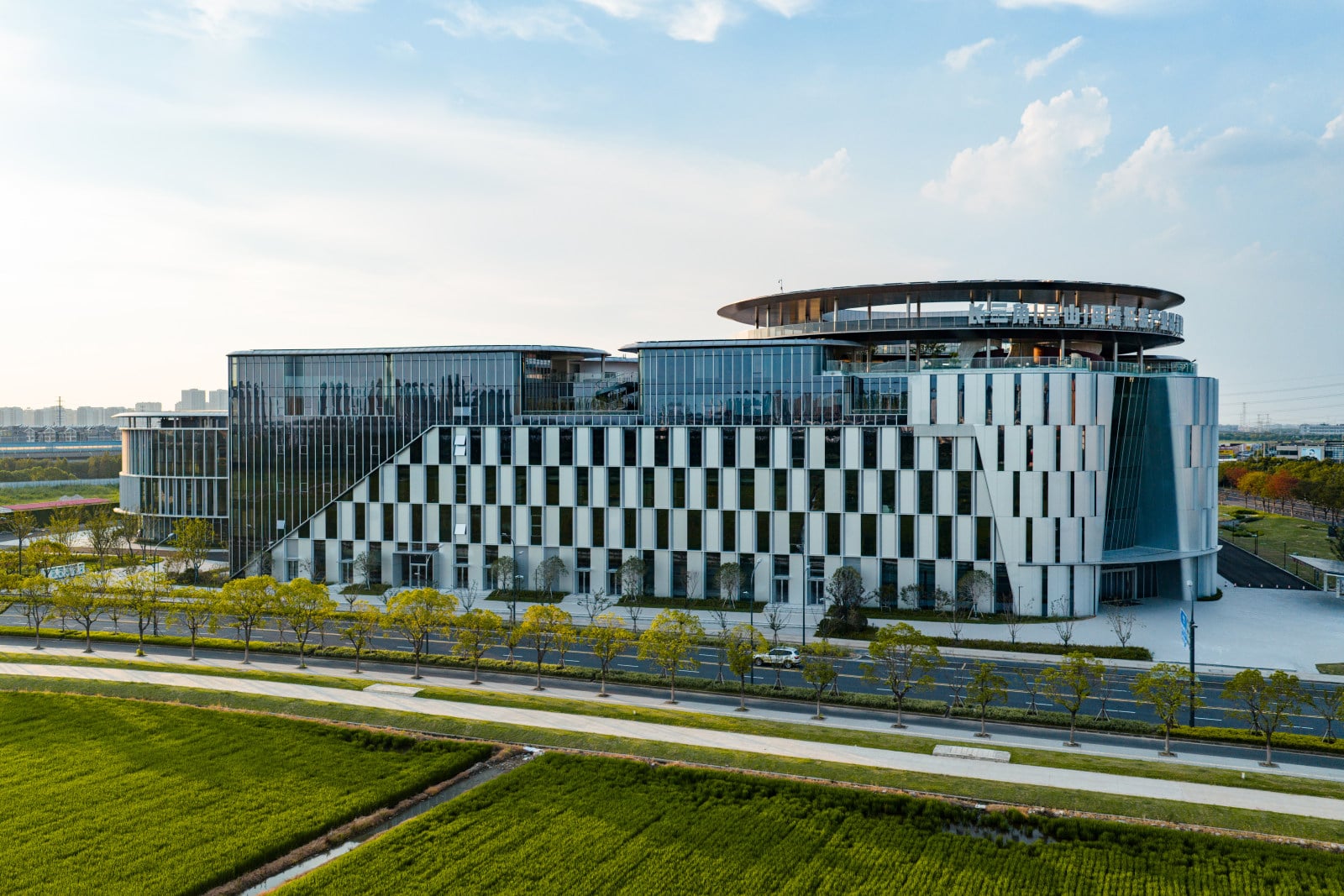

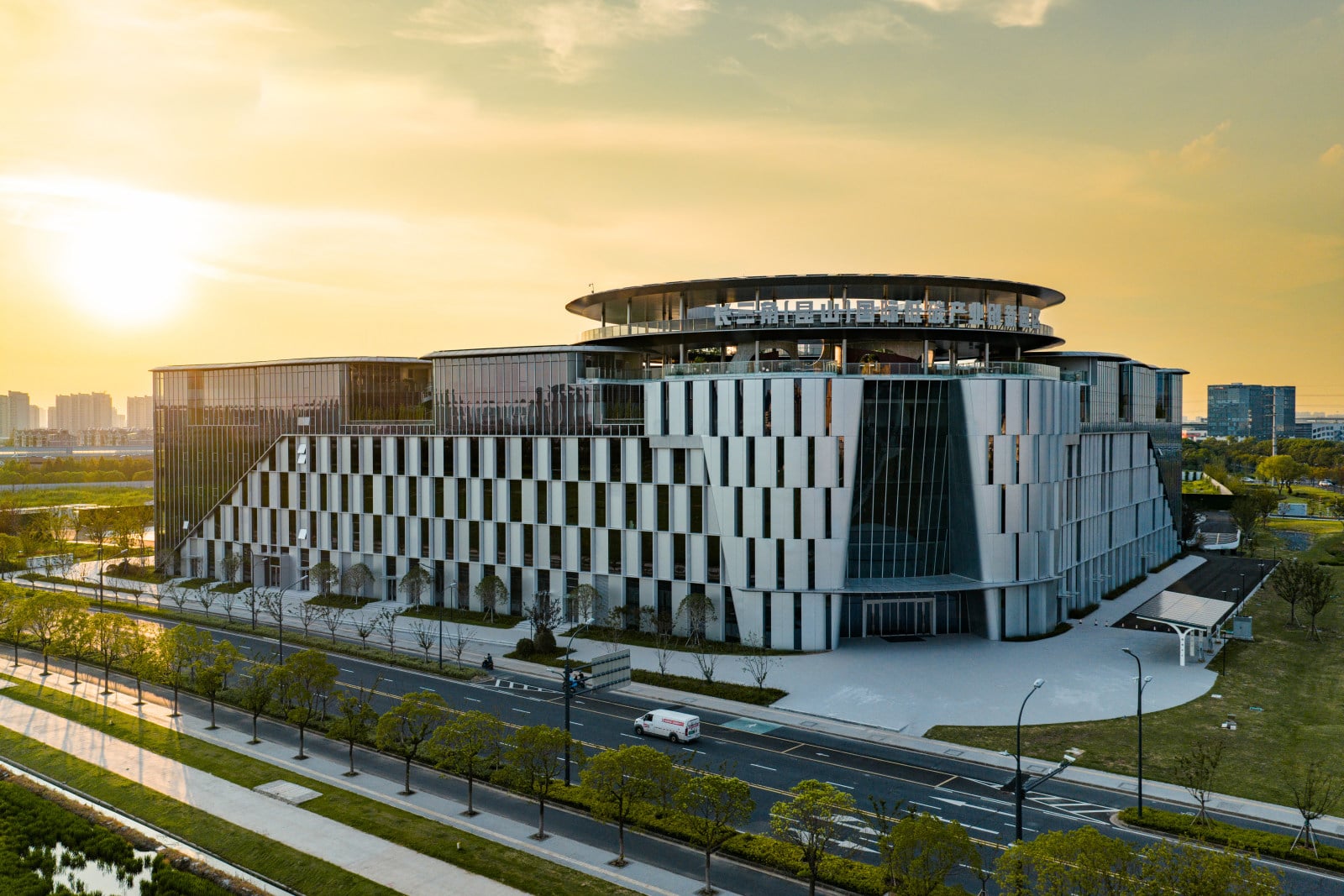

Kunshan Low-Carbon Industrial Park

ELKOM has listed Kunshan Low-Carbon Industrial Park (Yangtze River Delta (Kunshan) International Low-Carbon Industrial Innovation Park) as one of its high-end industrial project cases, and supplied the ELKOM metal integrated insulation curtain wall s...

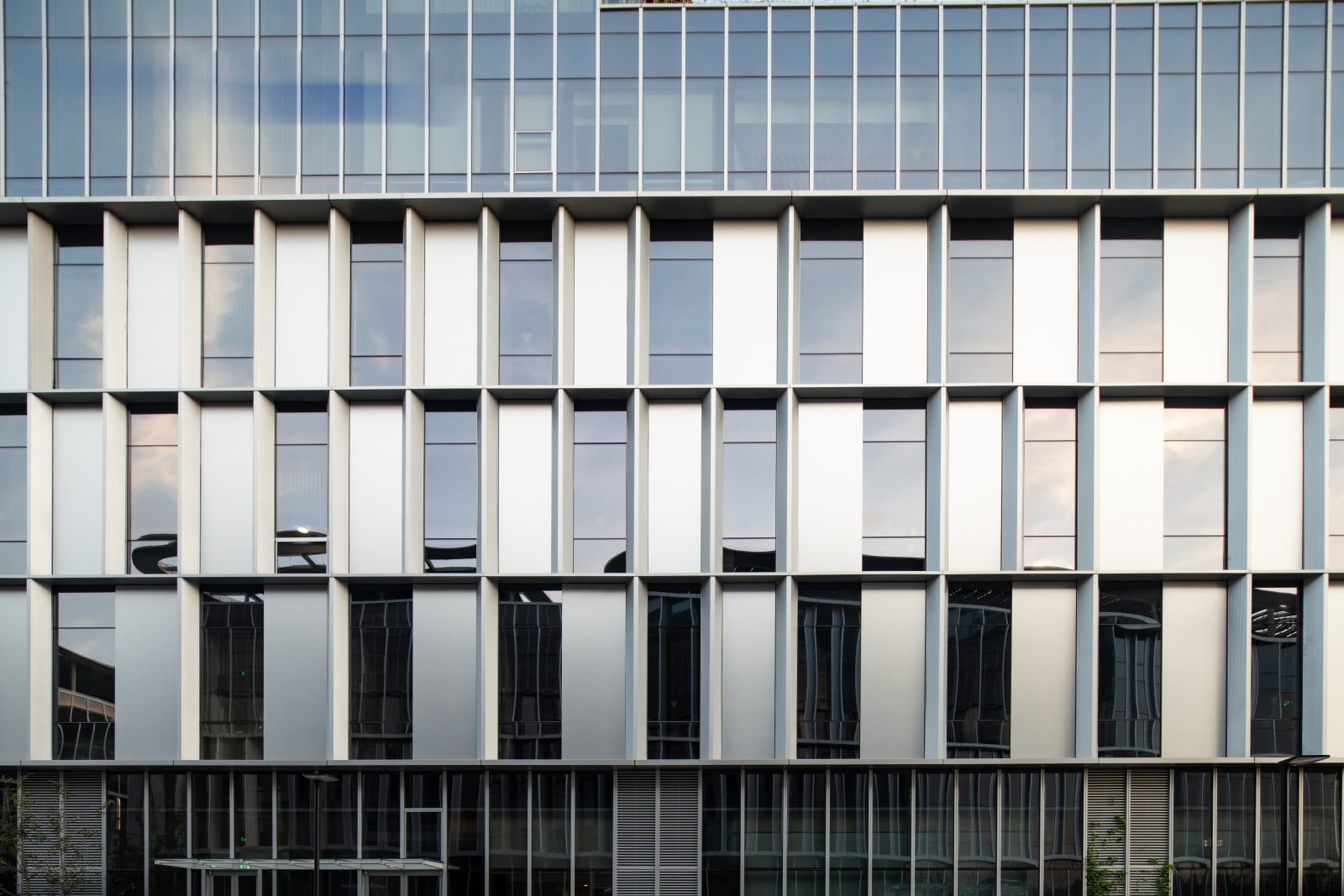

ELKOM Metal Insulated Curtain Wall System – Technical Parameters

1. Core Panel Specifications (PU-edged Rockwool Sandwich Panel)

Item	Parameter
Common Thickness	80mm / 100mm / 120mm (customizable)
Face Panel Material	Fluorocarbon-coated color steel sheet / aluminum veneer
Face Panel Thickness	0.7–1.2mm
Core Material	Class A non-combustible hydrophobic rockwool
Thermal Conductivity	λ ≤ 0.04 W/(m·K)
Panel Type	Four-side tongue-and-groove joint / hidden fastener, vertical layout

2. System Performance Parameters

Item	Parameter	Standard
Thermal Transmittance (K)	≤ 0.6 W/(㎡·K)	Ultra-low energy building standard
Air & Water Tightness	Class 1	GB/T 21086
Wind Pressure Resistance	≥ 1.2 kPa	Industrial building standard
Fire Rating	Class A non-combustible
Weather Resistance	Fluorocarbon coating warranty ≥ 15 years, usable temperature: -20℃~40℃
Seismic Fortification	Grade 7
Environmental Performance	Formaldehyde emission < 0.1 mg/m³	E1 grade, low VOC

3. System Advantages

Energy Saving & Low Carbon: High-efficiency rockwool core with low heat transfer coefficient, meeting the park’s zero-carbon/ultra-low energy consumption target.
Clean & Safe: Class A fireproof, tight seal, low VOC, suitable for high-end manufacturing and clean workshops.
Durable & Reliable: Weather-resistant and corrosion-resistant fluorocarbon coating for long-term industrial use.
Prefabricated Construction: Modular installation, shortens construction period and reduces on-site pollution.
